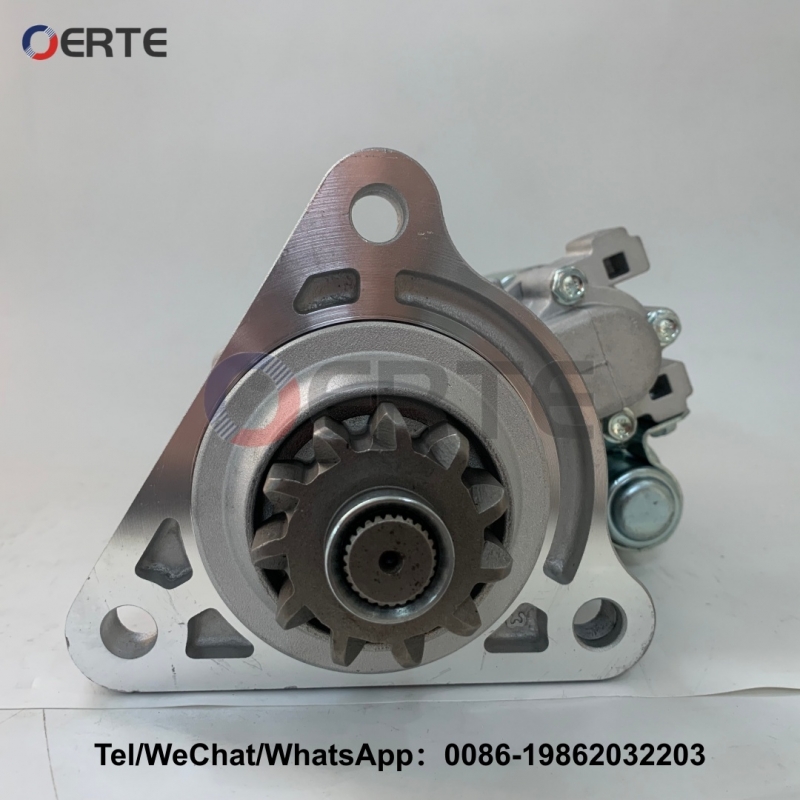

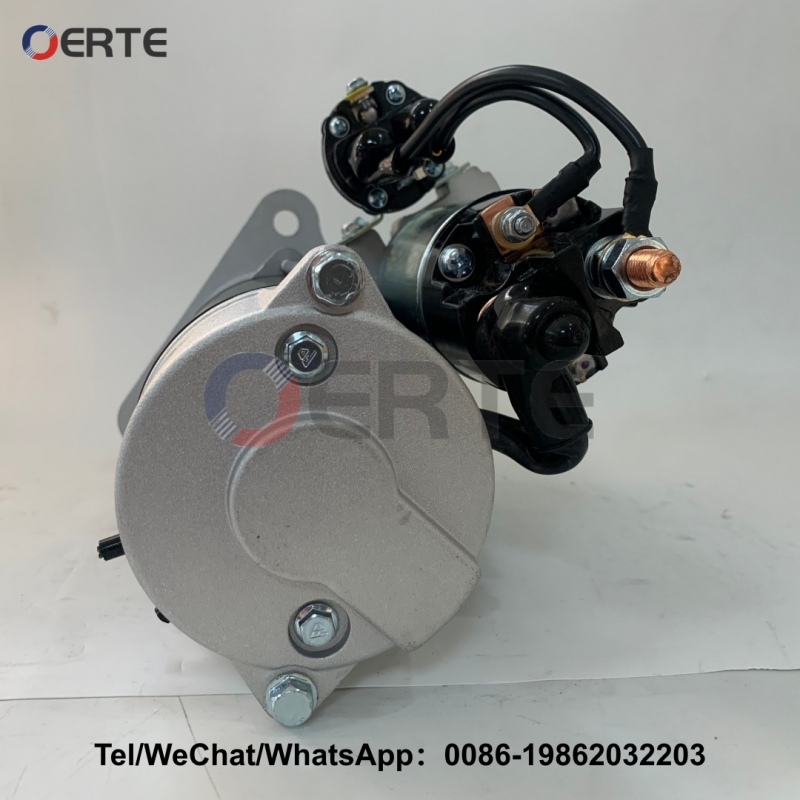

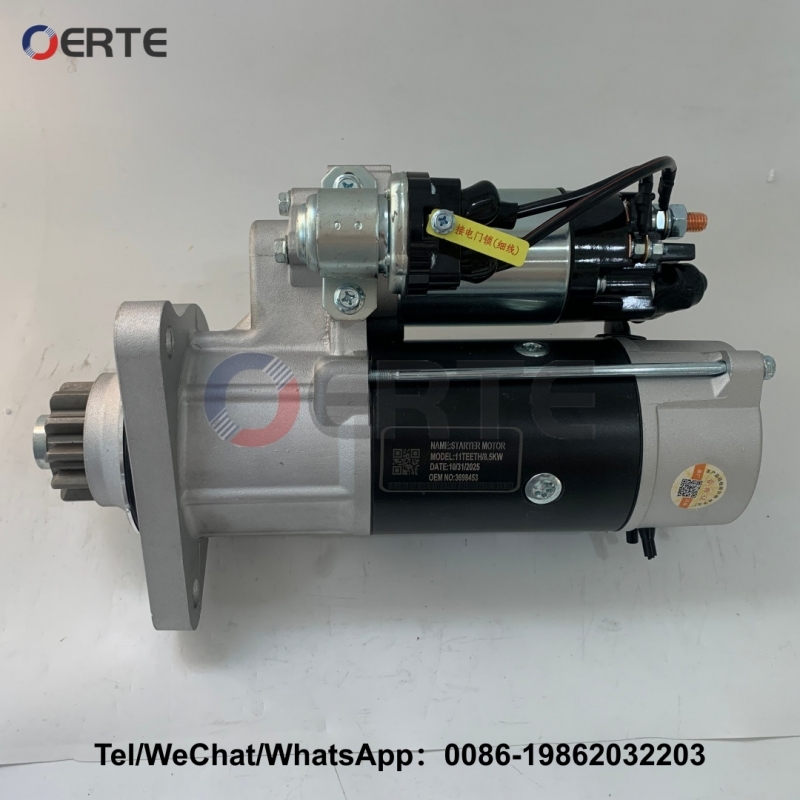

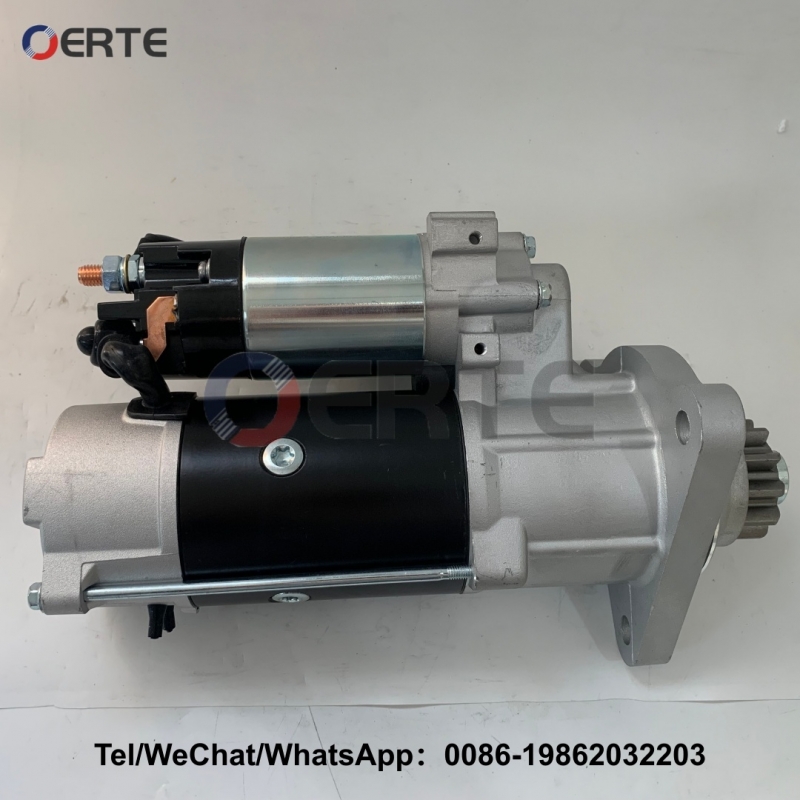

Key Details & Specifications

• Primary Application: Commonly utilized on commercial heavy-duty trucks, most notably the Foton Auman (Oman) and Foton Daimler truck platforms.

• Engine Compatibility: Specifically engineered to fit Cummins ISG, ISG11, and ISG12 series large-displacement commercial diesel engines.

• Electrical & Mechanical Specs:

• Voltage: 24-Volt electrical system

• Power Output: High-torque 8.5 KW rated power capacity

• Drive Gear: 11-tooth (11T) pinion gear

• OEM Cross-Reference Numbers: This assembly is 100% interchangeable with alternative Cummins factory part numbers 3695899 and 3698436.

• Aftermarket Interchanges: It directly crosses to Prestolite model series number M105R3075SE and Krauf number STP3075MH.
