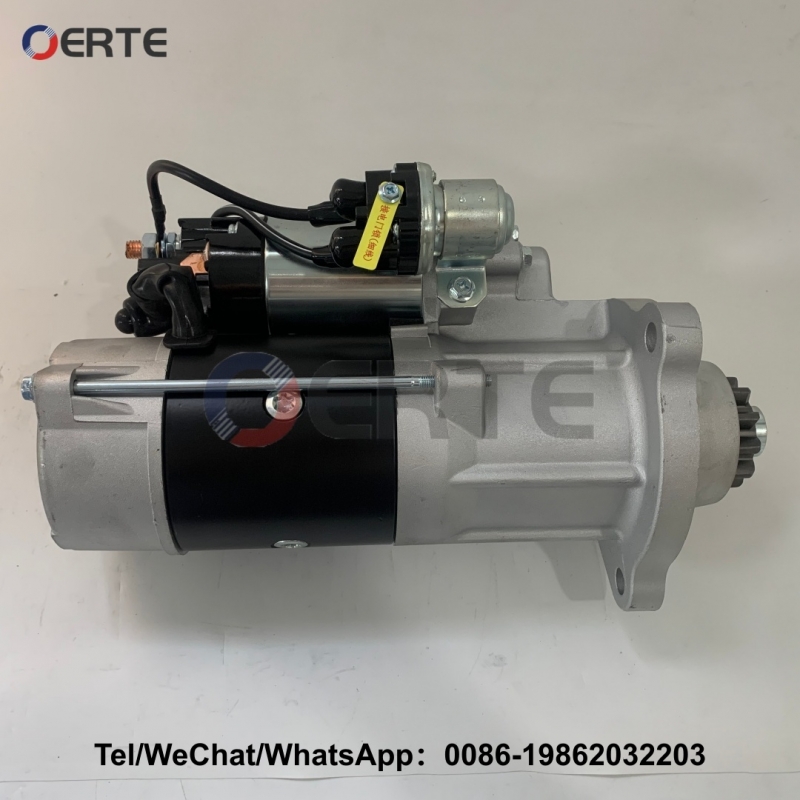

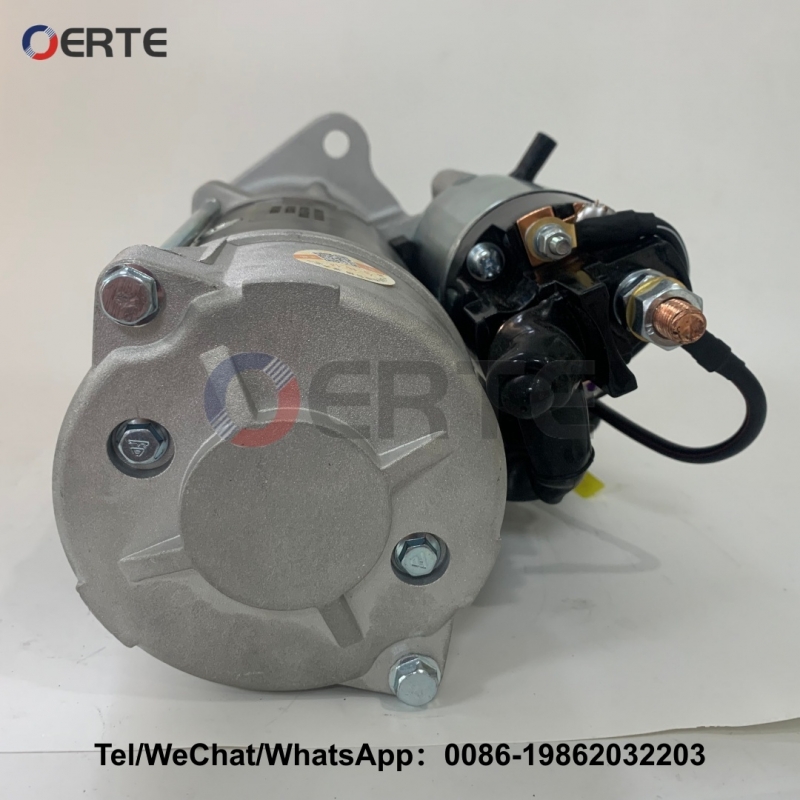

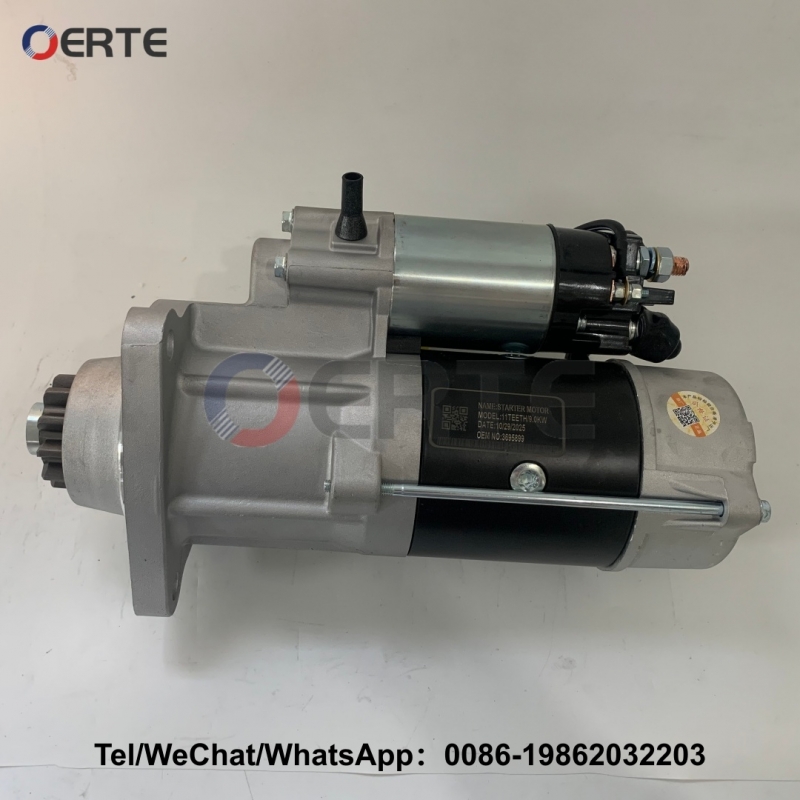

Key Details & Specifications

• Primary Application: Commonly used in heavy-duty commercial commercial trucks, including the Foton Auman / Oman truck platform.

• Engine Compatibility: Specifically engineered to fit Cummins ISG, ISG12, and QSG series large-displacement (typically 11.8L) diesel engines. It is also found on select QSX15 and ISX industrial series.

• Electrical & Mechanical Specs:

• Voltage: 24-Volt electrical system

• Power Output: Heavy-duty 8.5 KW (or 7.5 KW depending on aftermarket manufacturer trim)

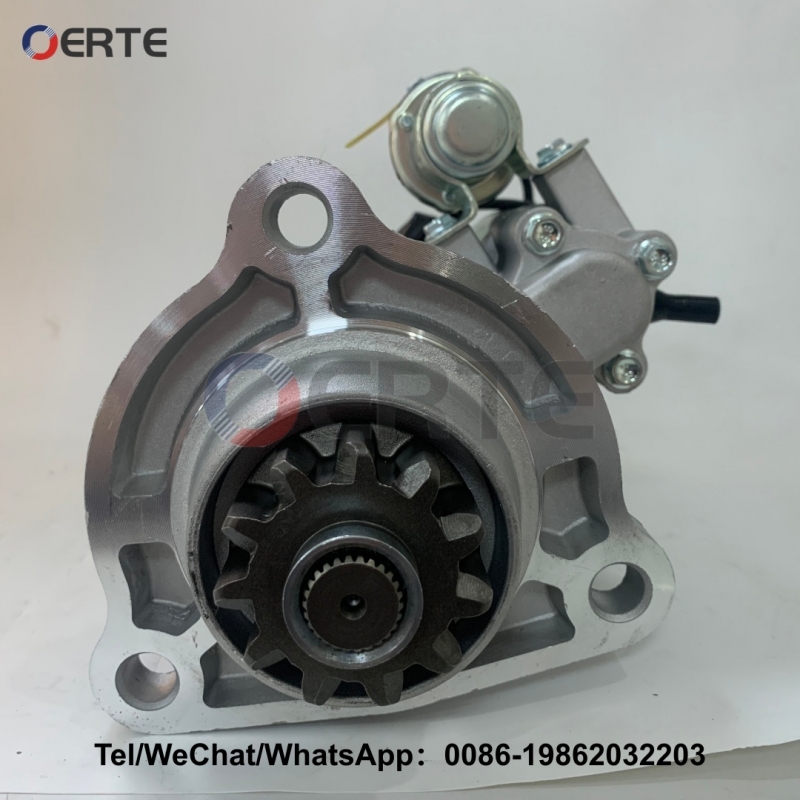

• Drive Gear: 11-tooth (11T) pinion gear
  OEM Cross-Reference Numbers: This unit directly switches or is sold interchangeably with alternative Cummins factory numbers 3698436 and 3698453.
  Aftermarket Interchanges: It directly maps to Prestolite numbers M105R3075SE and M90R3533SE, Krauf number STP3075MH, and Lucas number S1175201.
