Key Details & Specifications

• Primary Application: Widely utilized in DAF heavy-duty commercial trucks, specifically the DAF CF 85 and DAF XF 95 / XF 105 model series.

• Engine Compatibility: Engineered for DAF large-displacement commercial diesel engines, primarily the PACCAR MX (MX375U4) and XE engine variants.

• Electrical & Mechanical Specs:

• Voltage: 24-Volt electrical system

• Power Output: 5.5 KW rated output capacity

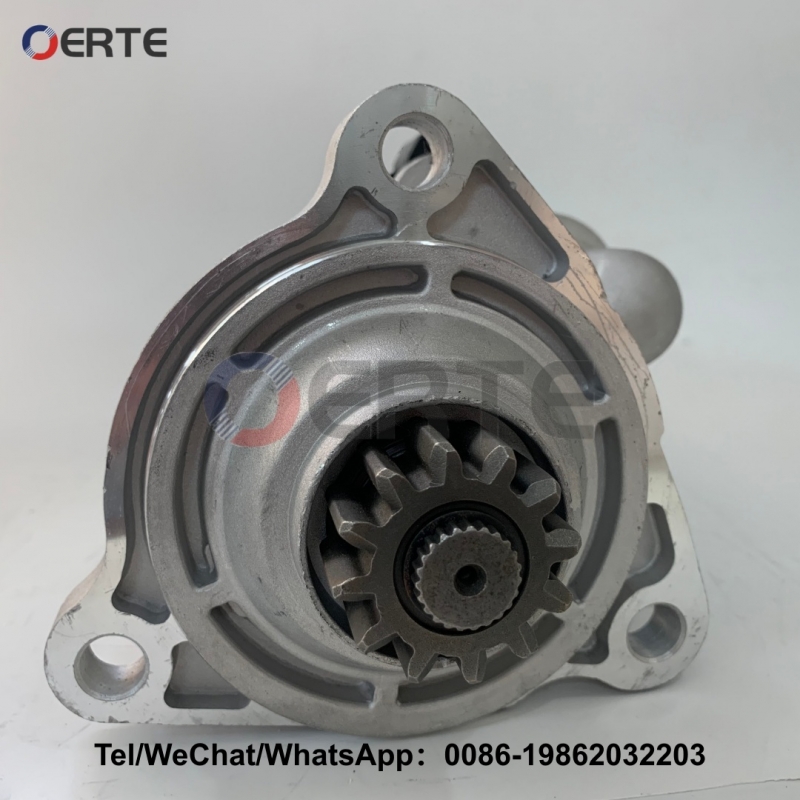

• Drive Gear: 12-tooth (12T) pinion gear

• Rotation: Clockwise (CW) rotation

• Pinion Diameter: 45 mm

• OEM Cross-Reference Numbers: This assembly interchanges with DAF factory original numbers 1540486, 1667425, 1688625, 1739935, 1876369, and 2134698.

• Aftermarket Interchanges: It directly maps to alternate Bosch production numbers 0001241015 and 0001241020, Hella 8EA 738 258-651, and Prestolite M90R3544SE.
