Key Details & Specifications

• Primary Application: Widely used in MAN heavy-duty commercial vehicles including the MAN TGA, TGS, and TGX truck model series.

• Engine Compatibility: Specifically engineered to fit MAN large-displacement diesel engines, such as the D2066, D2676, and D2866 engine series.

• Electrical & Mechanical Specs:

• Voltage: 24-Volt electrical system

• Power Output: 5.5 KW rated output capacity

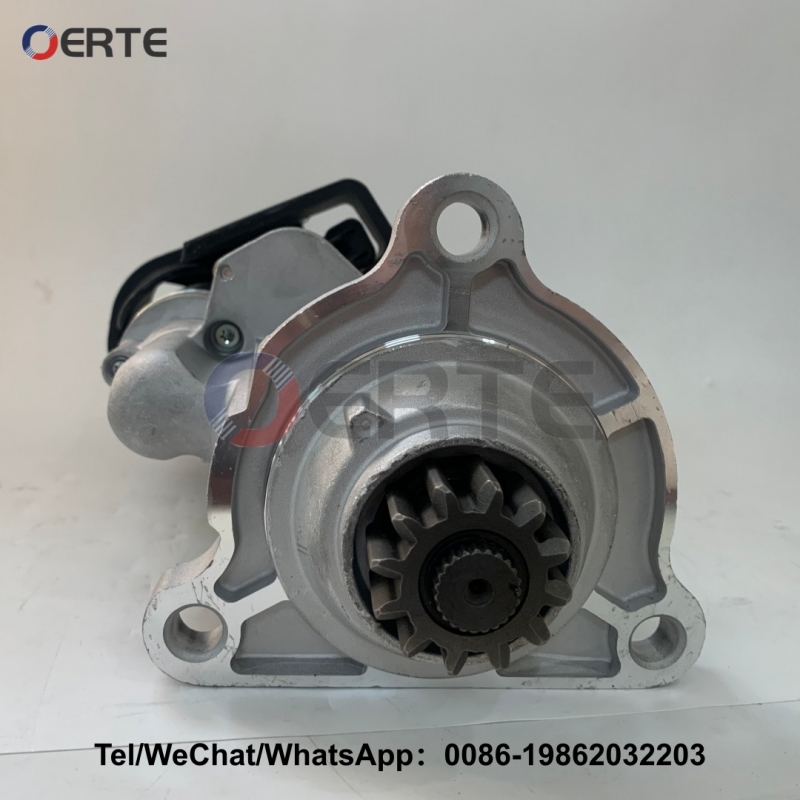

• Drive Gear: 12-tooth (12T) pinion gear

• Rotation: Clockwise (CW) rotation

• Starter Design: Planetary Gear Reduction (PLGR) type

• OEM Cross-Reference Numbers: This assembly replaces MAN factory numbers 51.26201-7220, 51.26201-7239, 51.26201-7228, and 51.26101-7228.

• Aftermarket Interchanges: It directly maps to alternate Bosch production numbers 0001241009 and 0001241021, Lucas LRS02378, and Mahle AZF4875.
