Key Details & Specifications

• Primary Application: Widely used in FAW J6, J6P, J6L, and J7 heavy-duty commercial trucks, as well as select heavy-duty machinery.

• Engine Compatibility: Specifically designed to fit FAWDE (Fawer Xichai) 6DM and 6DN series large-displacement diesel engines.

• Electrical & Mechanical Specs:

• Voltage: 24-Volt electrical system

• Power Output: High-torque 8.0 KW power rating

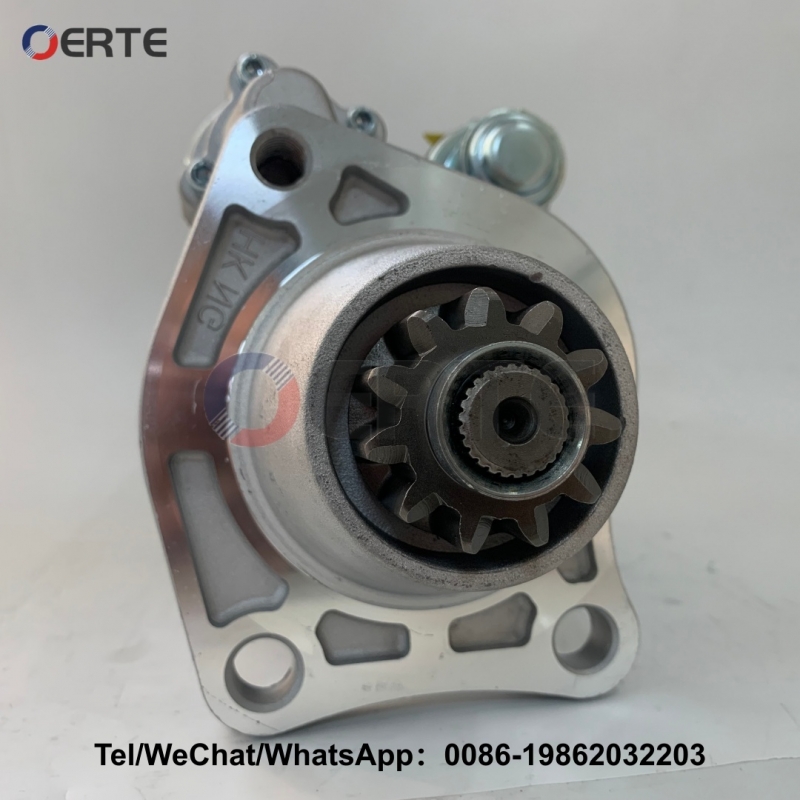

• Drive Gear: 11-tooth (11T) pinion gear

• Design Type: Gear-driven Direct Current (DC) starter motor assembly

• OEM Cross-Reference Numbers: This part is commonly cataloged interchangeably under family designations 3708010-53DB, 3708010B53D, 3708010B53, and 3708010A53DB.

• Aftermarket Interchanges: It maps directly to alternate factory model numbers QDJ2800C3 and QDJ2840K, Prestolite series number M105R3003SE, Krauf number STD3503MH, and Motorherz MS747.
