Name: | Relief Valve |
---|---|
Inquiry |
Assem | bly | kg | lbs | |
1-8 | 3546492 | Relief Valve | — | — |

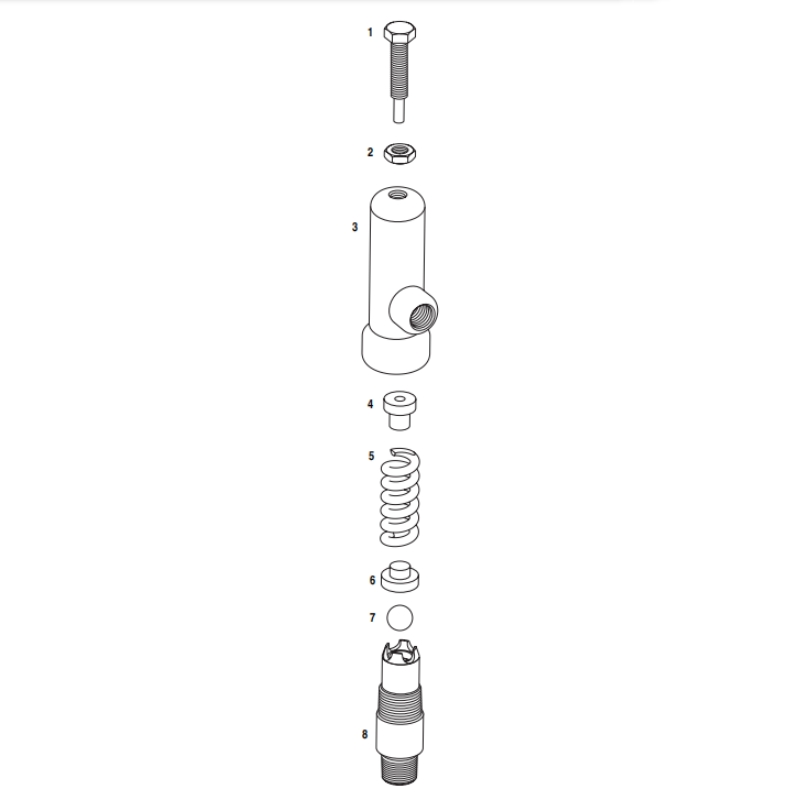

Parts | Qty | ||
1 | 21841 | Adjusting Screw | 1 |
2 | 22179 | Jam, Brass Nut | 1 |
3 | 3546493 | Body | 1 |
4 | 3546494 | Spring Guide | 2 |
5 | 24313 | Spring | 2 |
6 | 3546495 | Ball Holder | 1 |
7 | 21837 | Steel Ball, 15/16” | 4 |
8 | 3546496 | Seat | 4 |
This rugged pressure relief valve ensures protection of your pump during drilling operations. It automatically snaps to full open position when the predetermined pressure is exceeded. The pressure setting can be adjusted within the operating range by simply turning the adjusting screw on the top of the valve
