| Name: | Outer Tube Wrenches |
|---|---|
| Inquiry |
Assem | bly | kg | lbs | |

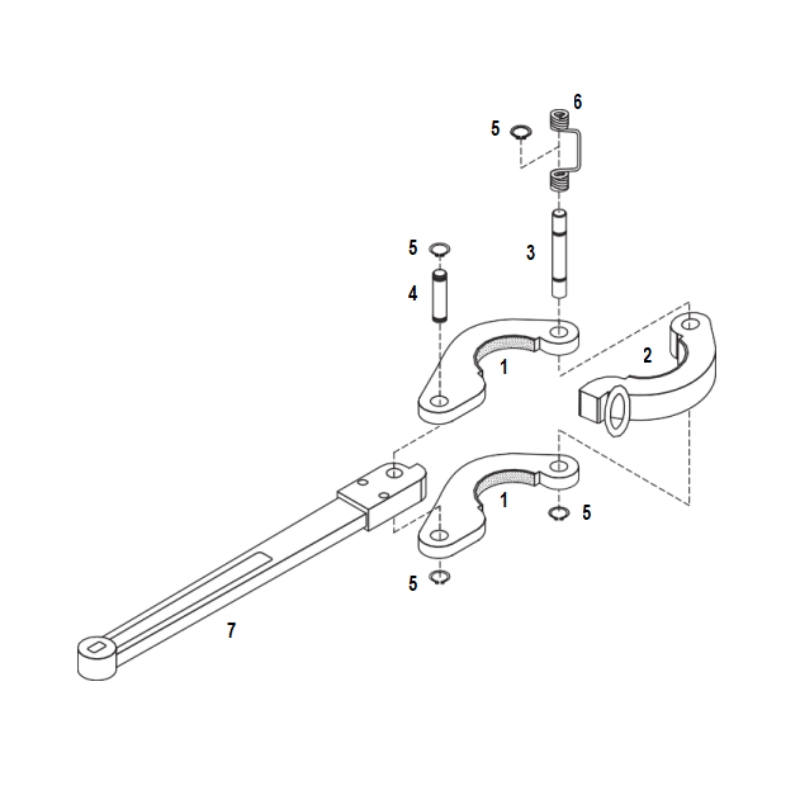

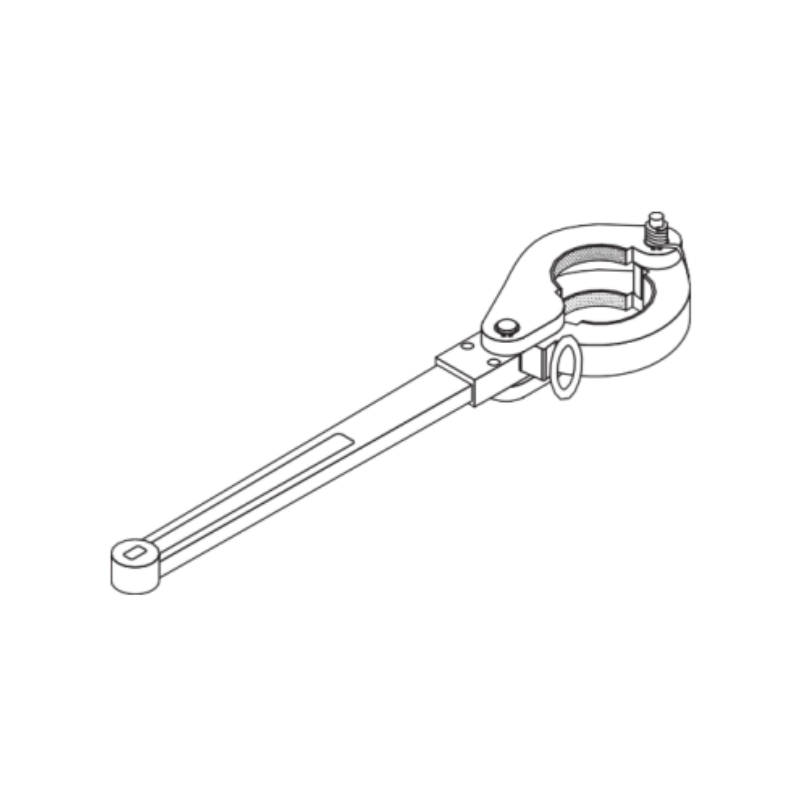

1-7 | 45804 | Full Grip PQ Outer Tube Wrench | — | — |
Parts | Qty | ||
1 | 45989 | Stationary Jaw | 2 |
2 | 45988 | Swing Jaw | 1 |
3 | 43485 | Pin, 5/8” x 4” | 1 |
4 | 43484 | Pin, 5/8” x 2-3/4” | 1 |
5 | 38583 | Retaining Ring | 4 |
6 | 43422 | Spring | 1 |
7 | 43483 | Wrench Handle | 1 |
