| Name: | Hoisting Plug - Heavy Duty |
|---|---|
| Inquiry |
Assem | bly | kg | lbs | |

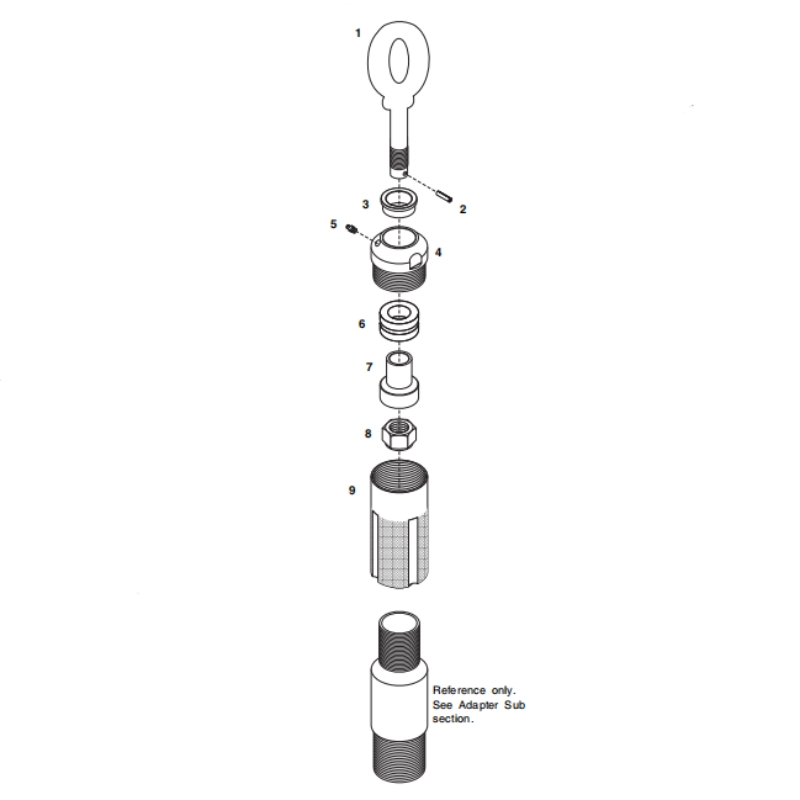

1-9 | 3542898 | Heavy Duty Hoisting Plug Assembly | 16.8 | 37.0 |
Parts | Qty | ||
1 | 3542899 | Eye Bolt | 1 |
2 | 24307 | Spring Pin 1/4” x 2” | 1 |
3 | 3542900 | Wear Sleeve | 1 |
4 | 3542901 | Bearing Housing | 1 |
5 | 17447 | Hydraulic Grease Fitting | 1 |
6 | 3542902 | Thrust Bearing | 1 |
7 | 3542903 | Shaft Sleeve | 1 |
8 | 3542914 | Stover Lock Nut | 1 |
9 | 3542904 | Lower Housing | 1 |
Option | s | Qty | |

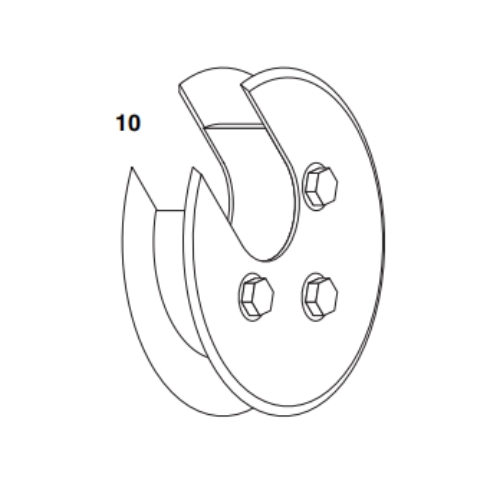

10 | 3542907 | Shackle Guide | 1 |
Features:
• Dependable, field proven product for surface drilling operations.
• See Tech Data for hoisting capacity. • Designed with a 5:1 safety factor utilizing rated eye bolt.
• Optional shackle guide is recommended to eliminate jamming of certain hoist cable shackles in the eye bolt.
• 12.5 mm (0.5 in) diameter down-angled vent is incorporated into the body to eliminate side spray from pressurized drilling fluid.
• Long-life thrust roller bearing provides pivot for ease of connecting and reduces hoisting cable winding during hoisting and lowering.
• NW rod box spindle connection.
