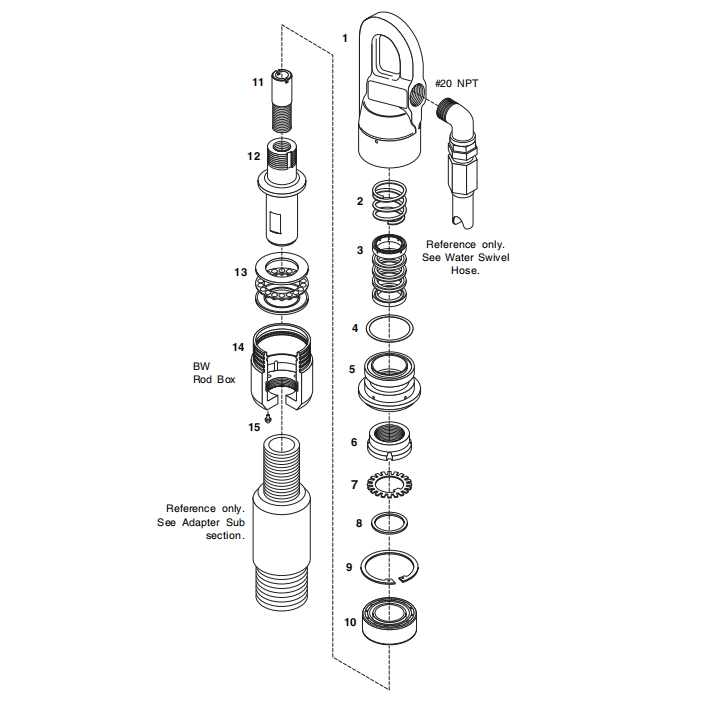

| Name: | Surface Universal Water Swivel |
|---|---|
| Inquiry |
Assem | bly | kg | lbs | |
1-15 | 67321 | Universal Water Swivel Assembly | 12.4 | 27.4 |
Parts | Qty | ||
1 | 39169 | Hoisting Cap | 1 |
2 | 39168 | Compression Spring | 1 |
3 | 39171 | Swivel Packing | 1 |
4 | 29737 | O Ring | 1 |
5 | 39172 | Packing Housing | 1 |
6 | 67325 | Spindle Nut | 1 |
7 | 67186 | Lock Washer | 1 |
8 | 67322 | Spacer | 1 |
9 | 40965 | Retaining Ring | 1 |
10 | 19906 | Ball Bearing | 1 |
11 | 39170 | Spindle Extension | 1 |
12 | 67324 | Spindle | 1 |
13 | 67187 | Ball Thrust Bearing | 1 |
14 | 67631 | Swivel Body | 1 |
15 | 17447 | Grease Fitting | 1 |
• Swivel cap complete with lifting bail for hoisting cable applications.
• #20 NPT hose connection.
• BW rod box spindle connection.
• Specially designed bearing lubrication keeps contaminants away and relieves excess lubrication pressure.
• Suitable for use with water or drilling mud.
• Easy servicing in the field with common tools.
