Name:Ezy Lock Overshot
Inquiry

Product Description


Assem

bly


kg

lbs

1-25

3546895

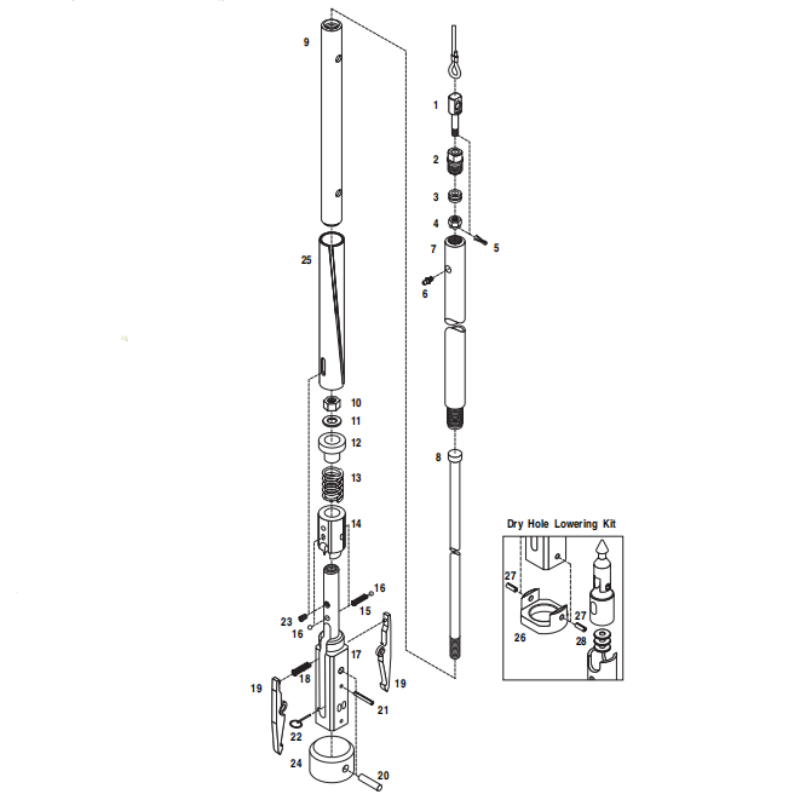

Ezy Lock Overshot Assembly




Parts



Qty

1

25991

Eye Bolt

1

2

25990

Cable Swivel Collar

1

3

25986

Thrust Bearing

1

4

25985

Castle Nut

1

5

44615

Cotter Pin

1

6

17447

Grease Fitting

1

7

44444

Cable Swivel Body

1

8

3540516

Jar Staff

1

9

3540515

Jar Tube

1

10

44524

Hex Nut 3/4 UNC

1

11

3548178

Washer, Nord-lock

1

12

3544103

Cap, Ezy Lock O/Shot

1

13

3544105

Spring, Ezy Lock O/Shot

1

14

3546745

Sleeve, Ezy Lock O/Shot

1

15

6951

Compression Spring

1

16

3543772

Ball 11/32"

2

17

3546748

Ezy Lock Overshot Head

1

18

3542027

Compression Spring

1

19

3540529

Lifting Dog

2

20

3540213

Plain Pin 1/2" x 3-1/4"

1

21

24307

Spring Pin 1/4" x 2"

1

22

3546747

Locking Pin

1

23

3545073

Set Screw, 3/8 UNF x 3/4 Nyloc

1

24

3541072

Sleeve

1

25

15965

Locking Sleeve

1




Qty

3543855

Dry Hole Lowering Kit

26

3543854

Dry Hole Overshot Cap

1

27

35788

Spring Pin 1/4” x 5/8”

2

28

19464

Flat Washer 1”

3
