1-35

3546500

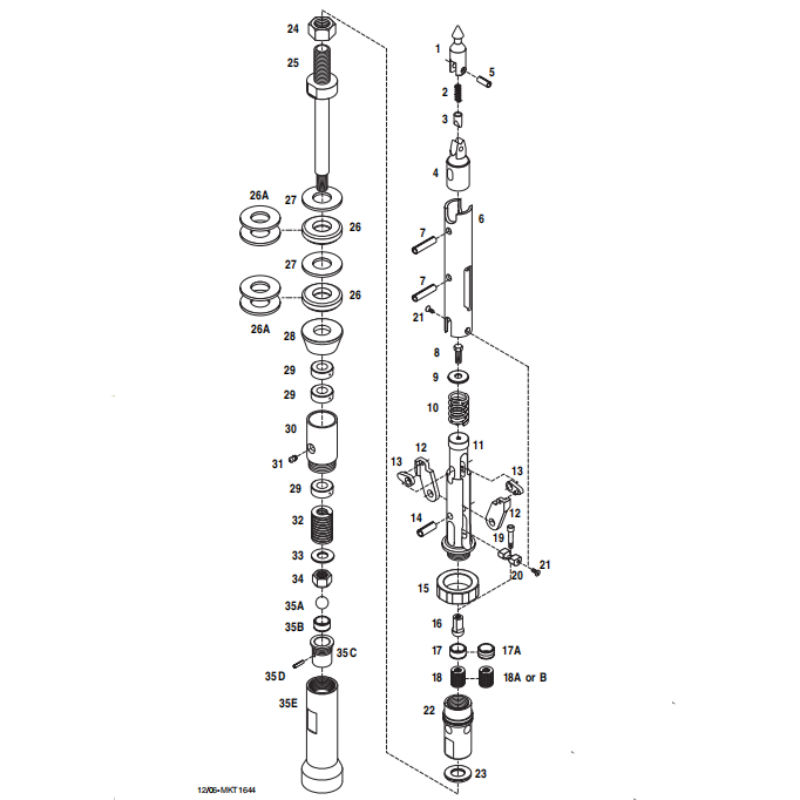

PQ Head Assembly

21.0

46.0

1

42913

Spearhead Point

1

2

15141

Compression Spring

1

3

42914

Detent Plunger

1

4

3540330

Spearhead Base

1

5

42905

Spirol Pin 7/16" x 1"

1

6

3540151

Latch Retracting Case

1

7

24524

Spring Pin 1/2" x 2-3/4"

2

8

3541932

Nyloc Bolt 3/8”-16UNC x 3/4”

1

9

104953

Washer

1

10

3543619

Latch Compression Spring

1

11

3540156

Upper Latch Body

1

12

3543796

Latch (PQ)

2

13

306216

Link (HQ)

2

14

24305

Spring Pin 1/2" x 2"

1

15

3543797

Landing Shoulder

1

16

3540152

Threaded Ball, 22 mm 1

17

306131

Fluid Retention Bushing

1

18

104966

Fluid Retention Spring, Light

1

19

3543388

Shoulder Bolt

1

20

3540153

Dry Hole Valve Holder

1

21

3541117

Nylon Insert Machine Screw

2

22

3548072

Lower Latch Body

1

23

3545206

Washer, Nord-lock

1

24

37475

Hex Nut

1

25

3548073

Spindle, Hollow

1

26

3540308

Shut-Off Valve, Hard

2

27

3540300

Valve Adjusting Washer

2

28

3540299

Washer, Tapered

1

29

24528

Thrust Bearing

3

30

3540794

Spindle Bearing

1

31

17447

Grease Fitting

1

32

3540755

Compression Spring

1

33

3544324

Washer, 1-1/4"<span&
