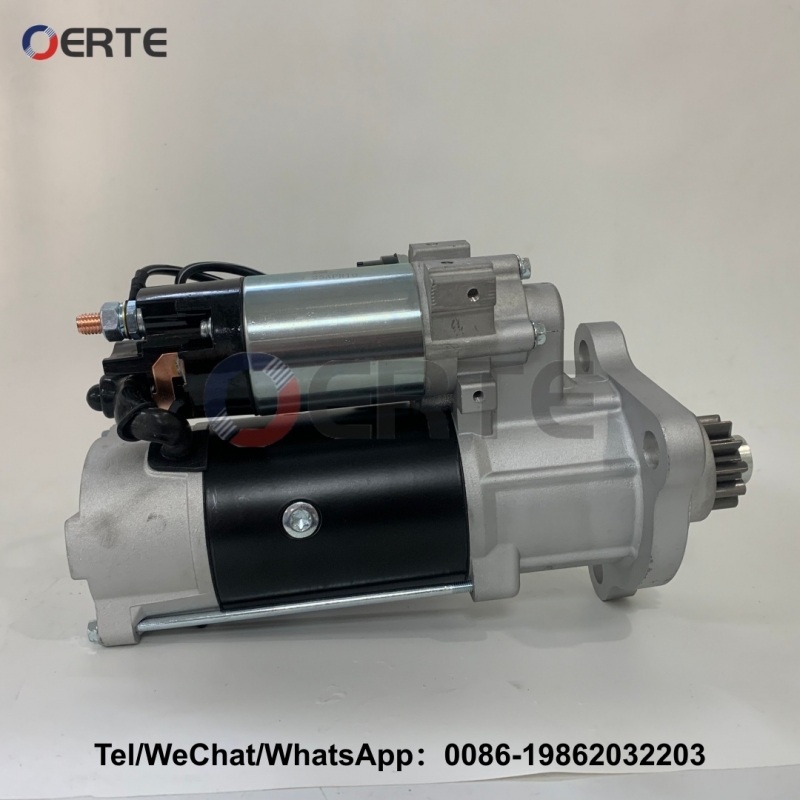

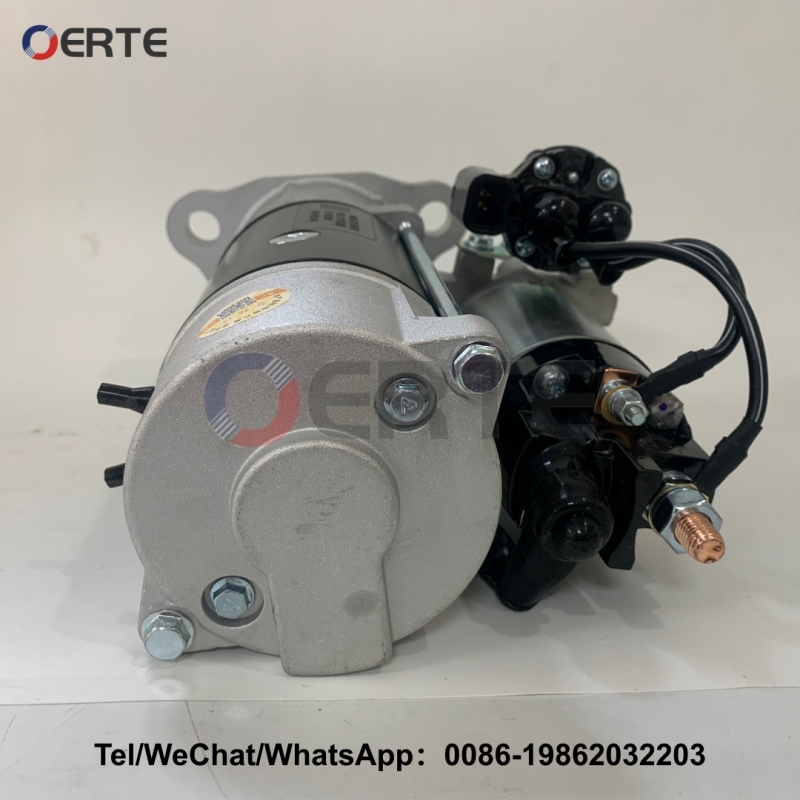

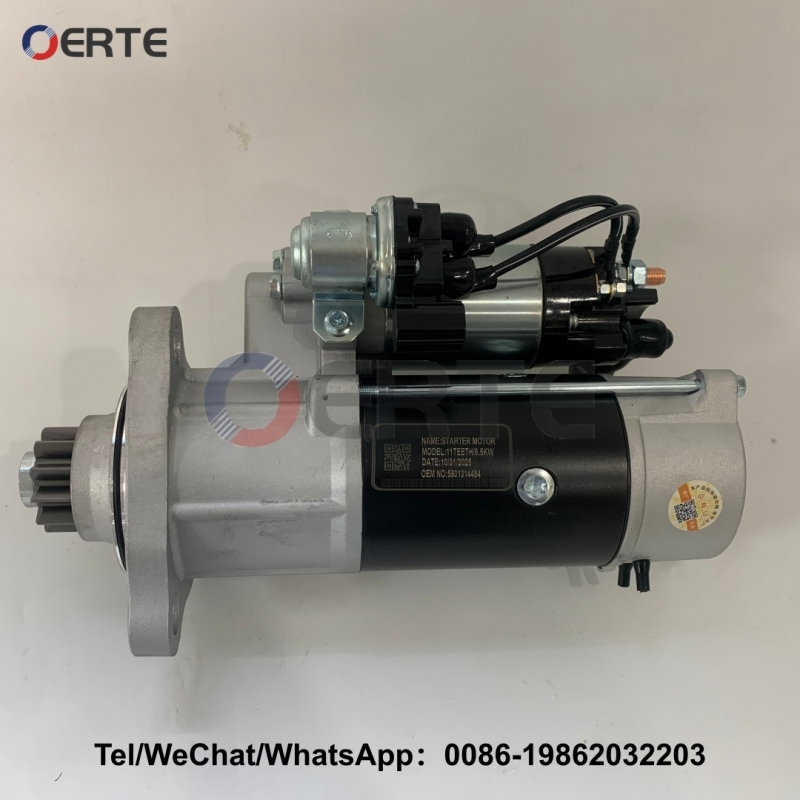

Key Details & Specifications

• Primary Application: Primarily used in Saic-Iveco Hongyan Genlyon heavy-duty commercial trucks, tippers, and mixers.

• Engine Compatibility: Specifically engineered to fit Fiat Powertrain Technologies (FPT) Cursor 9 (C9) and Cursor 11 large-displacement diesel engines.

• Electrical & Mechanical Specs:

• Voltage: 24-Volt electrical system

• Power Output: High-torque 7.5 KW rated power capacity

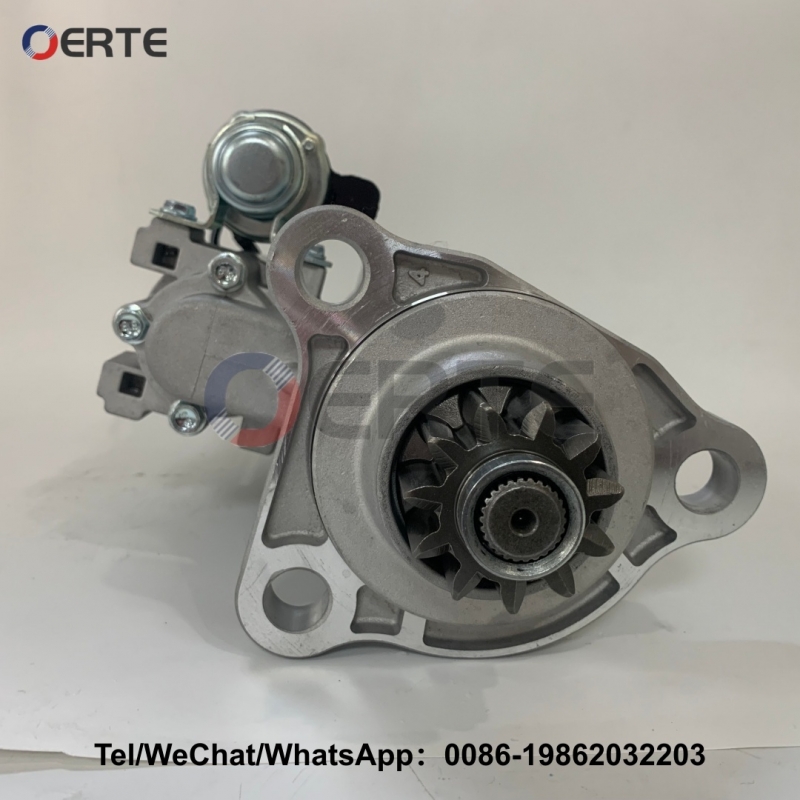

• Drive Gear: 12-tooth (12T) pinion gear

• Rotation: Clockwise (CW) rotation

• OEM Cross-Reference Numbers: This unit directly interchanges or matches IVECO factory numbers 5801655187, 5802001283, and Bosch production numbers 0001263505 and 0001263506.

• Aftermarket Interchanges: It maps directly to DT Spare Parts 7.61129, Mec-Diesel 330280, and Chinese factory model series designations QDJ2803H and QDJ2804.
