Key Details & Specifications

• Primary Application: Commonly utilized on commercial heavy-duty trucks, industrial machinery, and large power-generation units.

• Engine Compatibility: Specifically engineered to fit Cummins ISZ13, QSZ13, and QSZ-13 series large-displacement (13L) diesel generator and commercial vehicle engines.

• Electrical & Mechanical Specs:

• Voltage: 24-Volt electrical system

• Power Output: High-torque 7.5 KW to 8.5 KW rated power capacity depending on production application

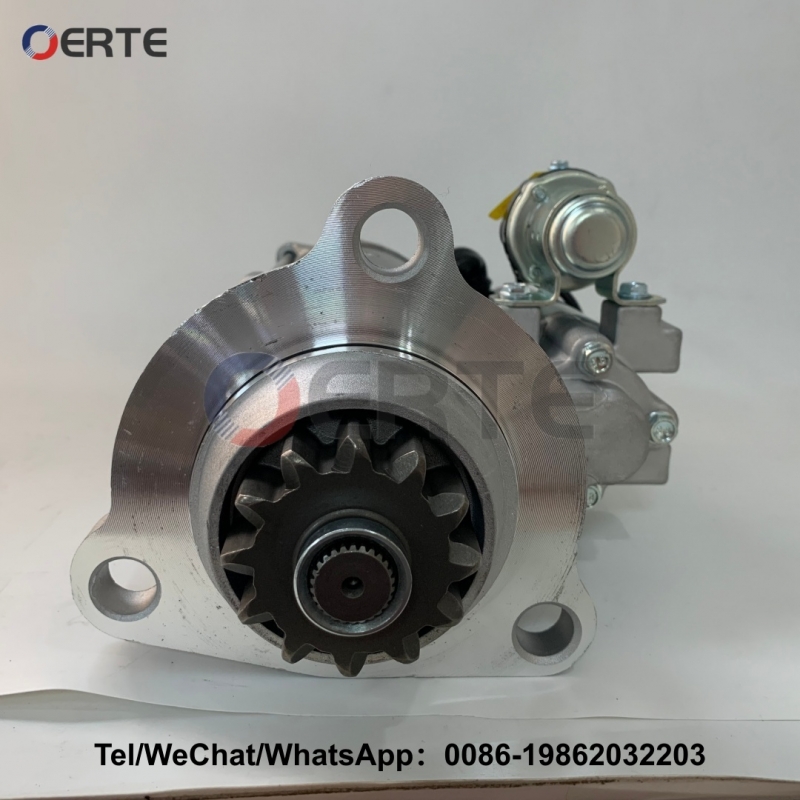

• Drive Gear: 12-tooth (12T) pinion gear

• OEM Cross-Reference Numbers: This assembly interchanges or is associated with factory numbers 2871257, 5547577, 5465926, and 110516.

• Aftermarket Interchanges: It directly crosses to Prestolite series model number M108R3714SE.
